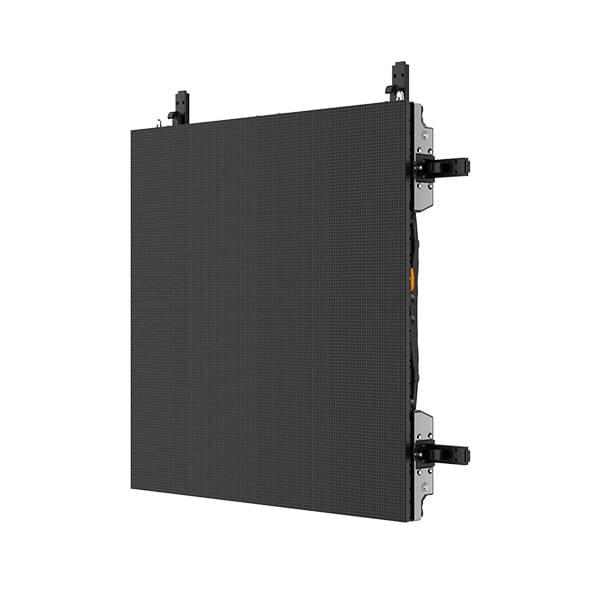

INFILED X SERIES 2.9

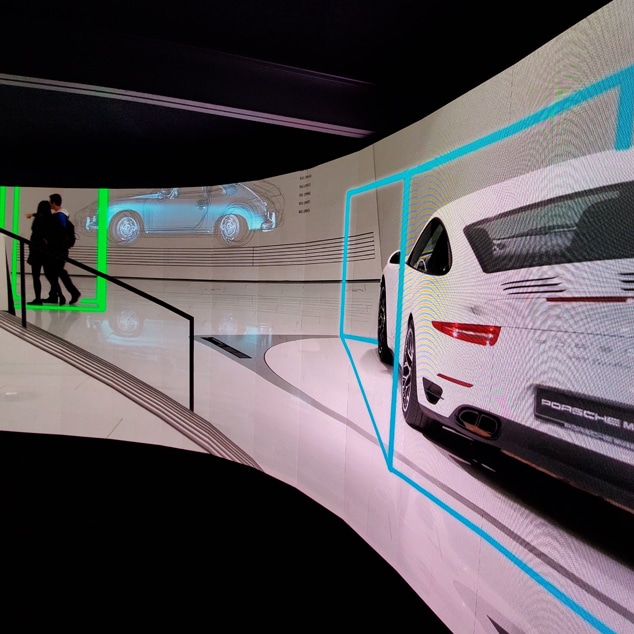

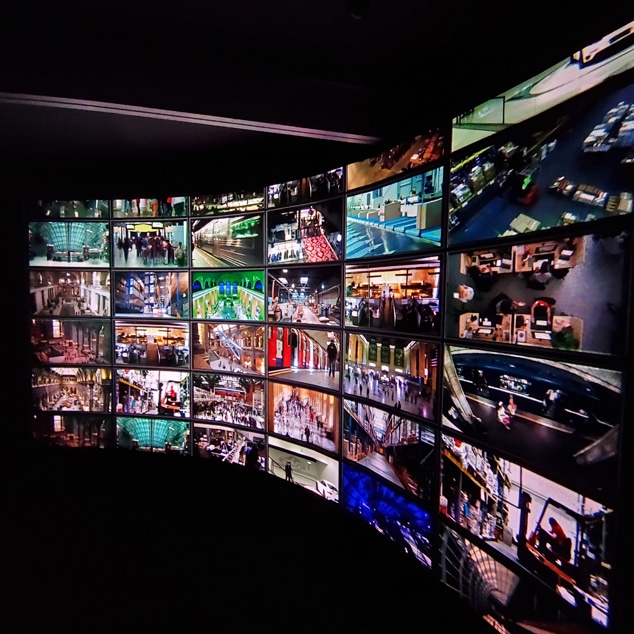

The 2.9mm Flex LED panels offer creative options for curved walls, cylinders, archways, waves & more.

  • microchip

    Flexible tiles allow for smoother and more tightly curved LED walls.

  • microchip

    5-20 degrees-per-tile in both concave and convex directions.

  • microchip

    Angle setting detents at 5, 10, 15, and 20 degrees per tile.

  • microchip

    Patented one-action locking mechanism with positioning pins.

  • microchip

    Magnetic connection is applied for fastening and easy service with positioning pins between tiles.

  • microchip

    Only 18 tiles per row to complete a full circle at tightest radius.

Get a Quote

TECH SPECS

Pixel Pitch 2.97 mm
Tile Size 500 x 500 x 84 mm
Brightness 1200 nits
Contrast 2000:1
Pixel Per Inch 8.534 ppi
LED Technology 3 IN 1 SMD
Aspect Ratio 1:1
Weight 20.94 lb
Max Power Consumption 135 watts
Viewing angle 160° horiz – 160° vert
Native Resolution 168 x 168 px
Minimum Convex Radius 9.5 ft
Minimum Concave Radius 9.5 ft
